Forces Acting on a Ladder Leaning Against a Wall

1 Weight W acting downwards at its mid point. None of the above Angle of friction is the a.

A Uniform Ladder Ab Leans Against A Smooth Vertical Wall At An Angle 60 Degree To The Horizontal The Weight Of The Ladder Is 200n By Taking Moments About A Suitable Point

The angle of the ladder with the floor was chosen as the variable to describe the movement while the ladder is in contact with the wall Figure 1.

. The force P exerted by the wall on the ladder is horizontal because the wall is frictionless. The motion of the ladder is governed by the equations of mechanics for rigid body motion namely. The force exerted by the ground on the ladder is the vector sum of a normal force n and the force of static friction f s.

There are four forces acting on the ladder. Since the ladder has a tendency to slip downwards the friction force will be acting upwards. But you can represent the force of wall on ladder by its components normal force and friction or by a single force vector that includes everything like they do in.

Upwards at its upper end d. Write down the magnitude of the normal. One approach by Mendelson 4 considers only the axial compression on the ladder in an idealized beam situation.

If the wall is smooth µ 0 the friction force will be zero. A ladder is leaning against the wall. They check their predictions using a Wireless 2-Axis Force Platform.

Here I look at the moments of forces for a ladder resting in equilibrium against a smooth wall and rough ground. Check out my video on a ladder leaning again. Towards the wall at its upper and B.

A ladder of mass m is leaning against a wall. 25 A ladder is leaning against a wall. Ii Force Q can be.

As the friction force is always opposite to the moving direction so friction force is shown in figure as per respective direction. Upward at its upper end Dupward at its upper end. The normal force acting against the wall is 75 N and the wall is perfectly smooth frictionless.

The weight of the workman. And the frictional force due to the ground. A uniform ladder A B is leaning against a smooth vertical wall on rough horizontal ground at an angle of 70 to the horizontal.

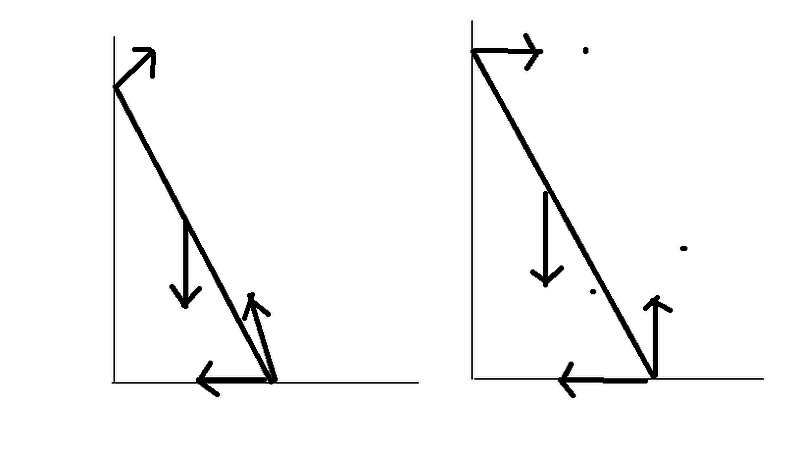

In a free body diagram one shows all the forces acting on the ladder. Angle between normal reaction and O the resultant of normal reaction and the limiting friction b. Next the balance of forces in x- and y-direction and the balance of moments around B are noted.

The angle between the ladder and the wall is 30. Ladder on the wall Solution. At top of the ladder there is a normal force due to the wall.

A more advanced treatment considers flexion 6. So coefficient of friction for smooth surfaces is. The coordinate system is set to x-y and left turning moments are positive.

The ladder is 60m long and has a weight of 150N. 2 Normal reaction Rh and friction force Fh µRh at the end B leaning against the wall. Here I look at the moments of forces for a ladder resting in equilibrium against a smooth wall and ground and held by a tie to prevent it slipping.

A 25 kg ladder is leaning up against a wall as shown below. There are torques due to these forces. At the base of the ladder there are two forces acting the normal force of the floor on the ladder and the frictional force.

A ladder is leaning against the wall. To solve the task the ladder is cut free in the first step. The normal reaction of the wall on the ladder is N 1 and that of the floor is N 2.

𝑅 𝑚 𝑟 1. The force of friction will act A. What is the coefficient of friction between the floor and the ladder if it is just beginning to slip.

On a ladder resting on smooth ground and leaning against vertical wall the force of friction will be a. The conditions for equilibrium are the following A The vector sum of all the forces acting on the ladder must add up to zero. Students make predictions about the forces acting on a dynamic track ladder leaning against a smooth wall.

The coefficient of friction between the wall and the ladder is μ 1 and that between the floor and the ladder is μ 2. There are torques due to these forces. Requirecancel The balance of forces in x-direction is tag1 sum.

Figure 2 shows the forces acting on a uniform ladder AB resting against a vertical smooth wall. Lt is in static equilibrium making an angle θ with the horizontal floor. A ladder leaning against a vertical wall.

Away from the wall at its upper end O c. Gravity force of wall force of floor. The ladder has length 8 m and is held in equilibrium by a frictional force of magnitude 60 N acting horizontally at B as shown in the diagram.

3 m 1 m. The reaction at the wall. Downward at its upper end D.

Downwards at its upper end O e. In that case according to the second law of motion the object will be in equilibrium 8 The vector sum of all the torques acting on the ladder as calculated about any axis must be zero. A ladder standing against a wall can be modeled as a uniform beam in static equilibrium.

The friction force is given as f μN where μ coefficient of friction and N normal reaction. The weight acts at the position of the workman and is directed vertically downwards. The reaction at the ground.

A ladder is resting on a smooth ground and leaning against a rough vertical wall. The floor is. I By taking moments about B determine the magnitude of the horizontal force P.

Away from the wall at its upper end C. If the ladder is about. Free body diagram for the ladder on the wall.

The gravitational force is acting at the center of the ladder. But the friction force is acted on the two points of the ladder which is in contact with the surfaces point A and B. Additional activities include adding a weight to the track and accounting for the friction between the track and the wall.

If the angle is large enough the net torque and the net force are zero and the ladder is in equilibrium. Persons weight that take into full account the normal and frictional reaction forces. At the base of the ladder there are two forces acting the normal force of the floor on the ladder and the frictional force.

The ladder is acted upon by the following set of forces. Towards the wall at its upper end b.
